LED Light Heat Sink

LED light systems are widely used in commercial lighting, industrial lighting, street lighting, and high-power illumination applications. As LED power continues to increase, efficient thermal management becomes essential to maintain brightness, reliability, and service life.

A LED Light heat sink is a thermal management component designed to absorb and dissipate heat generated by LED chips. By transferring excess heat away from LED components, the Heat Sink helps prevent overheating, improves lighting efficiency, and extends the lifespan of LED modules.

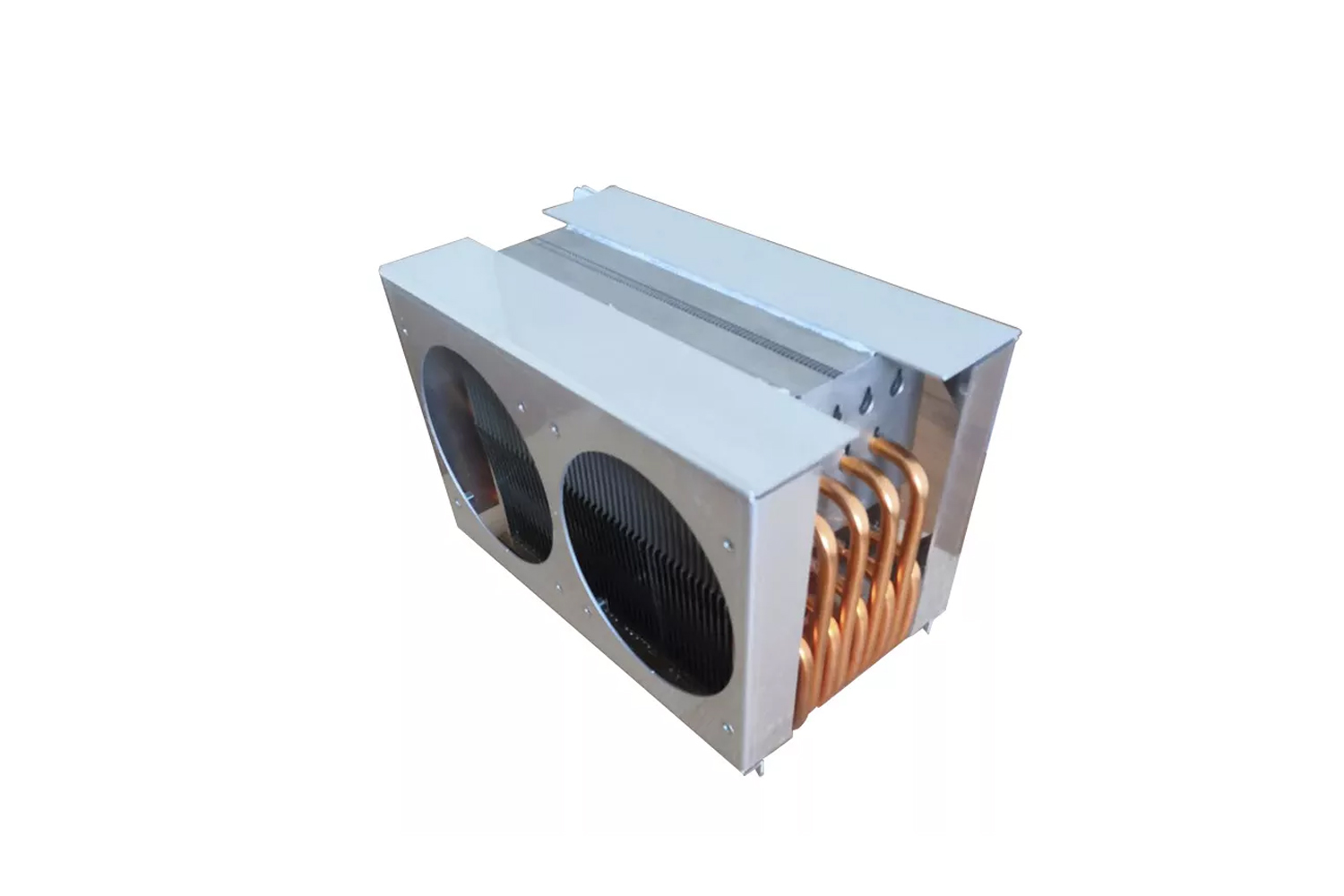

Our high power LED lighting heat pipe Heat Sink combines aluminum heat sink structures with advanced heat pipe technology to provide efficient heat spreading solutions for demanding LED applications. With OEM customization capability, precision manufacturing, and strict quality control, we provide reliable LED heat sink solutions for global customers.

What Is the Heat Sink of LED?

An LED heat sink is a device that removes heat generated during LED operation. Although LEDs are highly efficient compared with traditional lighting technologies, a portion of electrical energy is still converted into heat.

Without effective heat dissipation:

• LED junction temperature increases

• Light output decreases

• LED lifespan is shortened

• System reliability is reduced

A LED Lighting Heat Sink works as a thermal bridge between the LED module and the surrounding environment. It transfers heat away from the LED chip and releases it through conduction, convection, and radiation.

Common LED heat sink structures include:

• Aluminum extrusion heat sink

• Die casting heat sink

• Skived fin heat sink

• Heat pipe heat sink

• PCB board heat sink

• Custom LED heat sink

For high-power LED lighting applications, a heat pipe heat sink provides improved heat spreading performance by quickly transferring heat from concentrated heat sources to larger cooling areas.

How LED Heat Sinks Work

The working principle of an LED heat sink is based on efficient heat transfer.

Heat Generation

When an LED chip operates, electrical energy produces heat at the semiconductor junction.

The heat generated at the LED junction must be transferred away quickly to maintain a safe operating temperature.

Heat Transfer Through Thermal Interface

The heat moves from the LED chip to the heat sink base through:

• Thermal pads

• Thermal grease

• Soldering connection

A high-quality connection reduces thermal resistance and improves overall cooling efficiency.

Heat Spreading Through Heat Pipes

For high-power LED applications, integrated heat pipes improve heat distribution.

Heat pipes work through:

1. Evaporation
   Heat from the LED module causes the working fluid inside the heat pipe to evaporate.

2. Vapor Movement
   The vapor transfers thermal energy to the cooler area of the heat pipe.

3. Condensation
   The vapor releases heat and turns back into liquid.

4. Liquid Return
   The wick structure returns the liquid to the heat source area.

This continuous cycle allows heat pipes to transfer large amounts of heat efficiently.

The heat transport capacity of a heat pipe depends on:

• Required cooling power

• Heat flux capacity of the wick material

• Internal pressure drop

• Capillary pressure limit

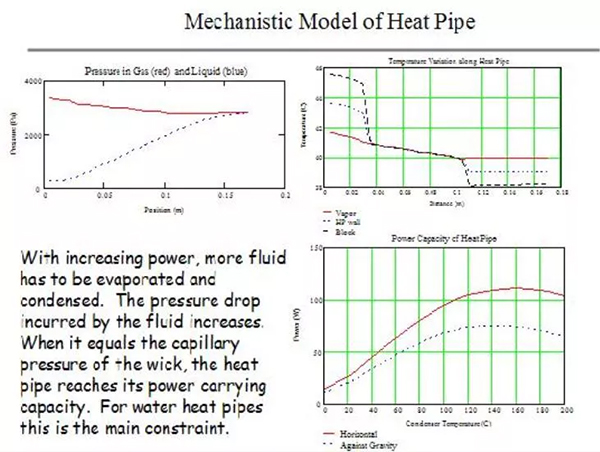

When the pressure drop equals the capillary pressure of the wick structure, the heat pipe reaches its maximum heat carrying capacity.

Common Materials and Designs of LED Heat Sinks

The material selection of an LED Lighting Heat Sink directly affects thermal performance, weight, and manufacturing cost.

Aluminum LED Heat Sink

Aluminum is the most commonly used material for LED heat sinks because of its excellent balance of:

• Thermal conductivity

• Lightweight structure

• Corrosion resistance

• Cost efficiency

Common aluminum materials include:

• AL6061

• AL6063

• AL1100

Advantages of aluminum heat sinks:

• Easy extrusion processing

• Excellent surface treatment capability

• Suitable for mass production

• Good heat dissipation performance

Copper Heat Sink

Copper provides higher thermal conductivity than aluminum and is suitable for applications requiring enhanced heat transfer.

Advantages:

• Excellent thermal conductivity

• Fast heat spreading

• Suitable for high-power LED systems

Copper is often combined with aluminum or heat pipes to achieve optimized thermal performance.

Heat Pipe LED Heat Sink Design

A heat pipe LED heat sink integrates heat pipes into an aluminum or copper heat sink structure.

Benefits include:

• Faster heat transfer

• Improved temperature uniformity

• Higher cooling capacity

• Compact thermal design

This design is widely used in:

• High power LED lighting

• Industrial lighting

• LED street lights

• Commercial lighting systems

Manufacturing Process of LED Lighting Heat Sink

As a professional LED heat sink manufacturer, we provide customized thermal solutions based on customer requirements.

The manufacturing process includes:

Design and Engineering

The development process includes:

Customer drawings or requirements
→ Design proposal
→ Thermal simulation
→ Prototype manufacturing
→ Performance verification
→ Customer validation
→ Tooling fabrication
→ Pre-series production
→ Acceptance validation
→ Mass production

Production Process

Our LED Lighting Heat Sink manufacturing capabilities include:

• Heat pipe soldering process

• CNC machining

• Aluminum extrusion

• Surface finishing

• Assembly

Available surface treatments:

• Nickel plating

• Black coating

• Anodizing

These treatments improve:

• Corrosion resistance

• Surface durability

• Heat radiation performance

Technical Specifications

Advantages of Our LED Lighting Heat Sink

High Thermal Performance

The combination of aluminum heat sink structures and heat pipe technology provides efficient heat spreading for high-power LED applications.

Custom Design Capability

We provide:

• Custom LED heat sink design

• PCB board heat sink solutions

• OEM heat sink manufacturing

• Prototype development

Customers can provide drawings, specifications, or application requirements, and our engineers develop optimized thermal solutions.

Reliable Quality Control

Each product undergoes strict inspection before shipment to ensure:

• Dimensional accuracy

• Surface quality

• Thermal performance

• Manufacturing consistency

Applications of LED Heat Sink

LED Lighting Heat Sinks are widely used in:

• LED street lights

• High bay LED lights

• Industrial lighting

• Commercial lighting

• Automotive LED lighting

• Electronic cooling systems

• High-power LED modules

For high-power applications requiring excellent thermal management, heat pipe LED heat sinks provide an effective solution.

Why Choose Our LED Heat Sink Manufacturing Service?

As an experienced heat sink manufacturer, we specialize in providing customized thermal management solutions for electronic applications.

Our capabilities include:

• Custom LED heat sink design

• Aluminum heat sink manufacturing

• Heat pipe heat sink production

• OEM and ODM services

• Prototype development

• Mass production

With ISO9001:2015 quality certification and advanced manufacturing processes, we help customers achieve reliable and efficient LED thermal solutions.

FAQ

What is the purpose of an LED heat sink?

An LED heat sink removes heat generated by LED chips, keeping the junction temperature within a safe range and improving LED lifespan and performance.

Why are aluminum heat sinks commonly used for LED lighting?

Aluminum offers good thermal conductivity, lightweight properties, corrosion resistance, and excellent manufacturability, making it ideal for LED heat sink applications.

How does a heat pipe LED heat sink work?

A heat pipe transfers heat through evaporation and condensation of internal working fluid, quickly spreading heat from the LED source to the cooling area.

Can LED heat sinks be customized?

Yes. Custom LED heat sinks can be designed according to customer drawings, heat load requirements, size limitations, and application conditions.

What materials are available for LED heat sinks?

Common materials include aluminum AL6061, AL6063, AL1100, and copper, depending on required thermal performance and application requirements.
