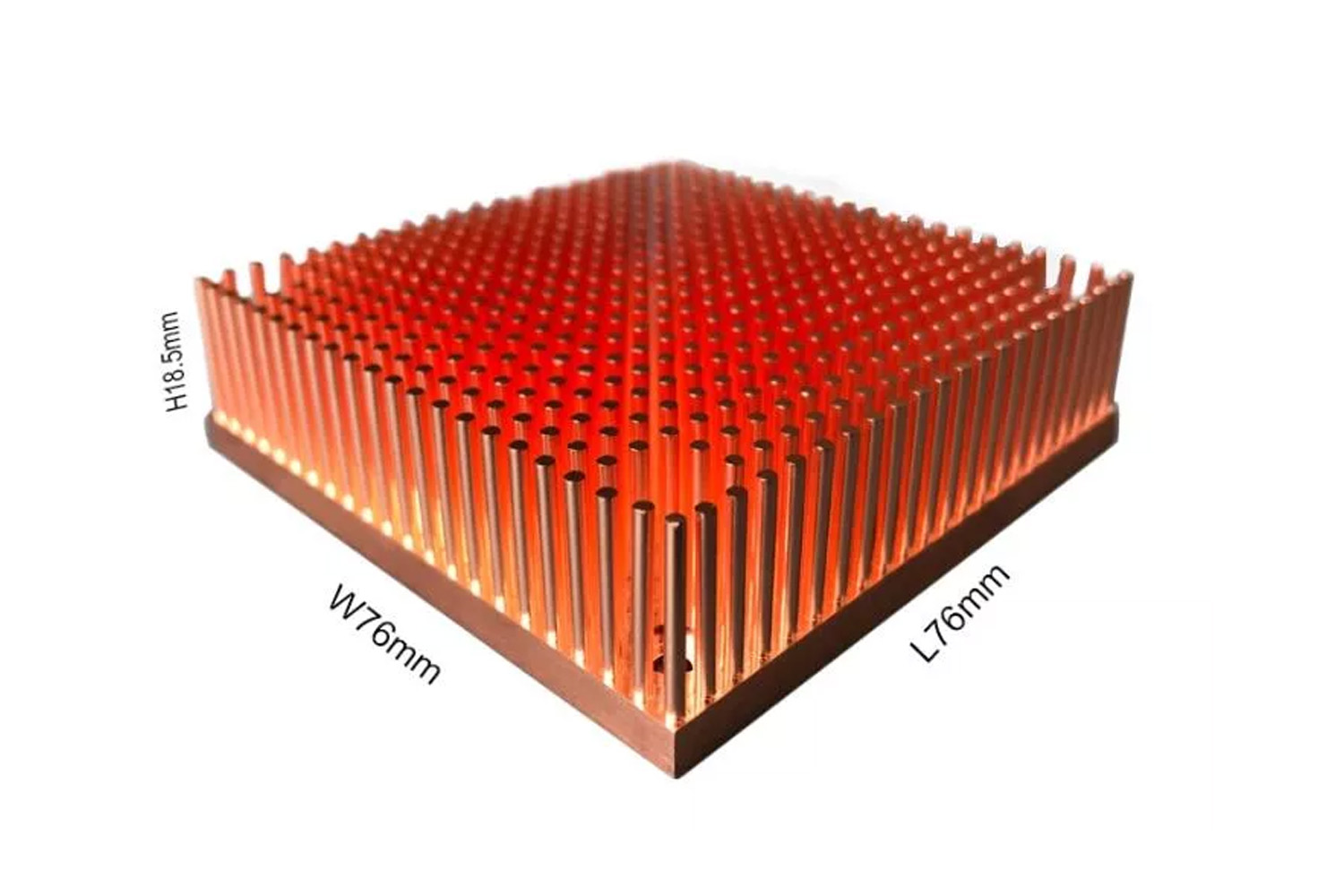

A cold forging copper pin fin heat sink is a high-performance thermal management solution manufactured through an advanced cold forging process using high thermal conductivity copper materials. By forming copper pins directly from a solid copper base, this Heat Sink achieves excellent thermal conductivity, high fin density, and efficient heat dissipation performance.
Compared with traditional fin Heat Sinks, copper pin fin Heat Sinks provide a larger surface area and optimized airflow paths, making them ideal for high-power electronic applications where compact size and superior cooling performance are required.
As a professional custom heat sink manufacturer, we provide OEM/ODM cold forged copper pin fin heat sink solutions for applications including LEDs, CPUs, GPUs, power modules, semiconductor devices, and industrial electronics.
A cold forging copper pin fin heat sink is a type of heat sink manufactured by pressing copper material into a precision mold at room temperature.
During the cold forging process, copper is formed into numerous vertical pins that extend from the base plate. These densely arranged copper pins increase the heat dissipation area and improve airflow interaction.
Unlike traditional machined heat sinks, cold forging allows the pins and base to be produced as a single integrated structure, reducing thermal resistance between the fins and base.
The main materials include:
Pure copper
C1100 copper
Copper alloys
Copper is widely selected because of its excellent thermal conductivity, allowing heat to transfer quickly from high-power components to the cooling fins.
A copper pin fin heat sink dissipates heat through conduction and convection.
Electronic components such as CPUs, GPUs, LEDs, and power semiconductors generate heat during operation.
The heat is transferred directly to the copper base of the heat sink through thermal interface materials.
Copper has a thermal conductivity of approximately 400 W/m·K, allowing it to quickly spread heat across the entire heat sink structure.
This reduces hot spots and improves temperature uniformity.
The high-density copper pins increase the total surface area exposed to airflow.
Air flows between the pins and removes heat through convection.
The pin fin structure allows airflow from multiple directions, making it suitable for systems with changing airflow conditions.
Copper provides superior heat transfer performance compared with aluminum.
A cold forged copper heat sink is ideal for applications requiring:
High heat flux management
Rapid heat spreading
Low thermal resistance
Cold forging enables the production of compact and dense pin fins.
Benefits include:
Increased cooling surface area
Improved airflow efficiency
Better thermal performance in limited spaces
This makes copper pin fin heat sinks suitable for compact electronic devices.
The cold forging process creates a one-piece structure where pins are directly formed from the copper base.
Advantages:
Lower thermal resistance
Better mechanical strength
Improved reliability
No soldering or bonding interface
Unlike traditional plate fins, pin fins allow airflow from multiple directions.
This design is especially effective for:
Fan cooling systems
Forced air cooling applications
Compact electronics
Cold forging improves the copper material through work hardening.
The process enhances:
Mechanical strength
Surface hardness
Structural stability
This ensures reliable performance under long-term operating conditions.
The manufacturing process of a cold forging copper pin fin heat sink includes:
High-quality copper materials are selected according to thermal requirements.
Common materials:
C1100 copper
Pure copper
The material is inspected for:
Chemical composition
Thermal performance
Surface quality
The copper blank is placed into a customized forging die.
Under high pressure, the material flows into the mold cavity and forms:
Copper base plate
High-density pin fins
Integrated heat sink structure
No melting process is required.
Optional treatments include:
Nickel plating
Tin plating
Anti-oxidation treatment
These improve:
Corrosion resistance
Surface protection
Long-term reliability
Each cold forged copper pin fin heat sink is inspected for:
Dimensions
Flatness
Surface quality
Thermal performance
Structural integrity
| Parameter | Specification |
|---|---|
| Product Name | Cold Forging Copper Pin Fin Heat Sink |
| Material | Pure Copper / C1100 Copper |
| Manufacturing Process | Cold Forging |
| Fin Type | Pin Fin |
| Structure | Integrated Copper Base + Pin Fins |
| Thermal Conductivity | Approx. 400 W/m·K |
| Surface Treatment | Nickel Plating / Anti-Oxidation Treatment |
| Size | Customized According to Drawing |
| Production Type | Prototype & Mass Production |
| Service | OEM / ODM Custom Heat Sink Manufacturing |
| Application | Electronics Cooling, LED, Semiconductor |
Used for cooling:
Power semiconductors
IGBT modules
MOSFETs
Power converters
The high thermal conductivity of copper makes it suitable for:
Gaming computers
Servers
AI computing systems
High-performance processors
Copper pin fin heat sinks are used in:
High-power LED modules
Laser lighting systems
Industrial lighting equipment
Applications include:
Chip cooling
Testing equipment
Precision electronic systems
| Feature | Copper Pin Fin Heat Sink | Aluminum Heat Sink |
|---|---|---|
| Thermal Conductivity | ~400 W/m·K | 150–235 W/m·K |
| Weight | Higher | Lower |
| Heat Spreading | Excellent | Good |
| Cost | Higher | Lower |
| Application | High-power cooling | General electronics cooling |
Copper is preferred when maximum thermal performance is required, while aluminum is commonly chosen for cost-sensitive applications.
As an experienced heat sink manufacturer, we specialize in providing customized cold forged copper pin fin heat sink solutions for global customers.
Our services include:
Custom heat sink design
Thermal performance optimization
Prototype development
Cold forging production
Mass manufacturing
We support customers with:
Drawing review
Material selection
Thermal simulation
Manufacturing optimization
to create efficient and reliable thermal management solutions.
A copper pin fin heat sink is a cooling component with multiple copper pins formed on a base plate to increase surface area and improve heat dissipation efficiency.
Copper has excellent thermal conductivity, allowing faster heat transfer and better cooling performance for high-power electronic applications.
Cold forging creates an integrated structure with better material utilization, higher strength, improved surface quality, and lower production costs for mass production.
Yes. Custom copper pin fin heat sinks can be designed according to dimensions, thermal requirements, airflow conditions, and application needs.
They are widely used in CPUs, GPUs, LED lighting, power electronics, semiconductor devices, and industrial cooling systems.
