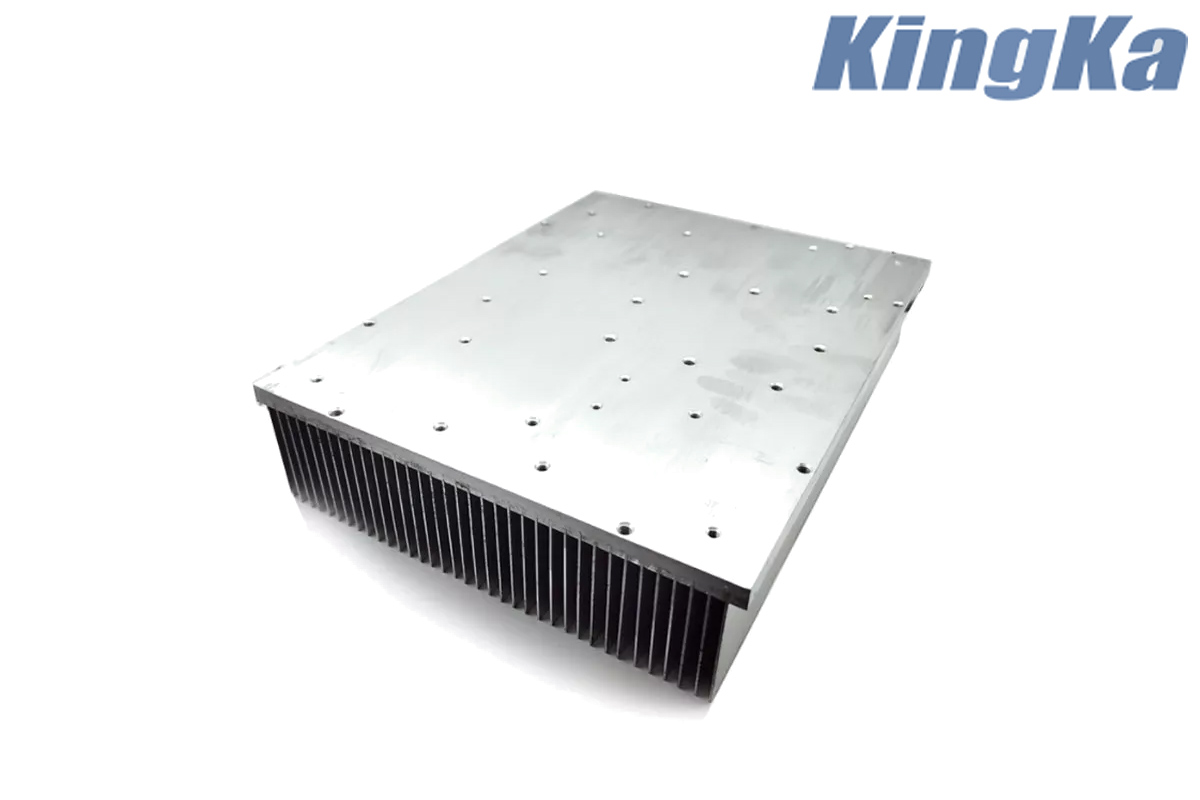

Customized Bonded Fin Heat Sink

Customized Bonded Fin Heat Sink is a high-performance thermal management solution designed for power electronics and other applications with demanding heat dissipation requirements. It consists of an aluminum or copper base with individually formed fins bonded into precision-machined grooves.

Compared with conventional extruded heat sinks, a Bonded Fin Heat Sink allows higher fin density, greater fin height-to-thickness ratios, and more flexible fin layouts. The base can be manufactured by extrusion, die casting, or CNC machining, while the fins can be punched from coil stock or cut from thin metal sheets.

Our custom bonded fin heat sinks are available with thermal epoxy bonding, brazing, or soldering processes, providing reliable mechanical attachment and efficient thermal transfer between the fins and base.

Bonded Fin Heat Sink Design

High-Density Fin Configuration

The main advantage of a bonded fin heat sink is its flexible fin structure. Individual fins are installed into grooves on the aluminum or copper base, allowing engineers to optimize:

• Fin height

• Fin thickness

• Fin pitch

• Fin density

• Fin orientation

• Base thickness

• Airflow direction

Higher fin density can increase the effective heat dissipation area while maintaining a compact footprint, making bonded fin technology suitable for high-power heat sinks and space-constrained thermal management systems.

Aluminum or Copper Construction

The heat sink base can be manufactured from AL6063 aluminum or other aluminum/copper materials according to thermal and mechanical requirements.

Aluminum provides a good combination of thermal conductivity, low weight, corrosion resistance, and manufacturability. Copper can be selected when higher thermal conductivity is required.

The combination of a conductive base and individually bonded fins creates an efficient thermal path from the heat source to the surrounding air.

Bonded Fin Manufacturing Process

Grooved Base Preparation

The aluminum or copper base is produced according to the customer's drawings. Depending on the application, the base can be extruded, die cast, or CNC machined.

Precision grooves are then created in the base to accommodate the individual fins.

Fin Preparation

The fins are produced from thin aluminum or copper sheet materials using punching, cutting, or other precision forming processes.

Fin dimensions can be customized according to the required fin pitch, fin height, thickness, and airflow configuration.

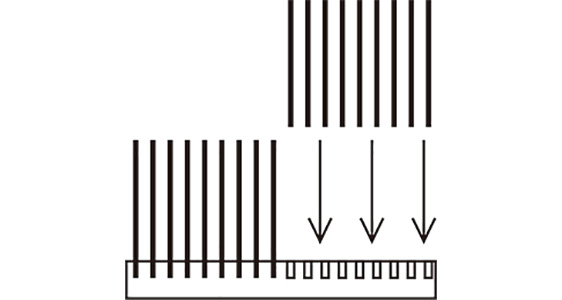

Fin Bonding

The prepared fins are inserted into the grooves and securely joined to the base using one of the following bonding methods:

• Thermally conductive epoxy bonding

• Vacuum or controlled-atmosphere brazing

• Soldering

The bonding method can be selected according to the required thermal resistance, operating temperature, mechanical strength, and production volume.

CNC Machining & Surface Treatment

Additional CNC machining can be performed on mounting surfaces, threaded holes, contact areas, and other critical features.

Surface treatments such as conductive anodizing can also be applied to improve surface properties and corrosion resistance.

Technical Specifications

Advantages of Customized Bonded Fin Heat Sinks

High Thermal Performance

The bonded fin structure allows for high fin density and high fin aspect ratios, increasing the effective surface area available for heat dissipation.

This makes the design suitable for applications where a conventional extruded heat sink cannot provide sufficient thermal performance.

Flexible Fin Design

Because the fins are manufactured and installed individually, fin geometry can be optimized independently from the base. This provides greater flexibility in designing the air cooling heat sink around the actual airflow and heat load.

Lower Tooling Cost

Bonded fin heat sinks generally require less complex tooling than some integrated fin manufacturing processes. The grooved base can be produced with relatively straightforward tooling or CNC machining, making the technology suitable for customized and medium-to-high-volume production.

Flexible Material Selection

The base and fins can use different materials according to thermal requirements. For example, an aluminum base with aluminum fins provides a lightweight solution, while copper components can be introduced where higher thermal conductivity is required.

Long and Flexible Airflow Paths

Bonded fin construction is not subject to the same length limitations associated with some extrusion processes. This allows engineers to develop longer heat sinks and customized airflow configurations for larger thermal systems.

Applications

Customized bonded fin heat sinks are widely used in applications where high-power components require efficient air cooling.

Thermoelectric Modules

Bonded fin heat sinks can be used with thermoelectric modules to remove heat from the hot side and improve overall thermal management efficiency.

UPS Systems

For uninterruptible power supplies (UPS), customized heat sinks help dissipate heat generated by power conversion components and maintain stable operating temperatures.

Variable Speed Motor Controls

Power semiconductor devices in variable speed motor controls generate substantial heat during operation. High-density bonded fins provide an effective solution for forced-air cooling.

Power Rectification Equipment

Rectifiers and other power conversion equipment can use customized bonded fin heat sinks to transfer heat away from semiconductor components.

Laser Power Supplies

Laser power supplies require reliable thermal management to maintain stable electrical performance. Bonded fin heat sinks can provide high surface area and efficient forced-air cooling.

Traction Drives

High-power traction drive systems can benefit from customized aluminum or copper bonded fin heat sinks designed around specific component layouts and airflow requirements.

Custom Bonded Fin Heat Sink Manufacturer

As an experienced custom heat sink manufacturer, we provide complete bonded fin heat sink solutions from engineering design and material selection to machining, bonding, surface treatment, thermal testing, and mass production.

Customers can provide 2D drawings, 3D CAD files, samples, or thermal requirements. Our engineering team can then optimize the fin configuration according to heat load, available installation space, airflow, thermal resistance, and mounting requirements.

With OEM production, CNC machining, customized dimensions, conductive anodizing, and 100% thermal testing, our customized bonded fin heat sinks are designed for reliable thermal management in demanding industrial and electronic applications.

FAQ

What is a bonded fin heat sink?

A bonded fin heat sink consists of a metal base with individual fins mechanically and thermally bonded into grooves. The fins can be attached using thermal epoxy, brazing, or soldering.

What materials can be used?

Common materials include aluminum and copper. AL6063 aluminum is one of the available options for lightweight and efficient thermal management.

What is the difference between bonded fin and extruded heat sinks?

An extruded heat sink forms the base and fins as one continuous profile. A bonded fin heat sink uses individually produced fins, allowing greater flexibility in fin height, thickness, density, and configuration.

Can the bonded fin heat sink be customized?

Yes. Fin height, fin thickness, fin pitch, base dimensions, mounting holes, material, bonding method, and surface treatment can all be customized according to the application.

What bonding methods are available?

Thermally conductive epoxy bonding, brazing, and soldering are available. The appropriate method depends on the operating temperature, thermal requirements, mechanical requirements, and production conditions.

Can CNC machining be added?

Yes. CNC machining can be used for mounting holes, threaded holes, contact surfaces, and other precision features. Selected critical dimensions can achieve tolerances down to 0.01 mm, depending on the design.
