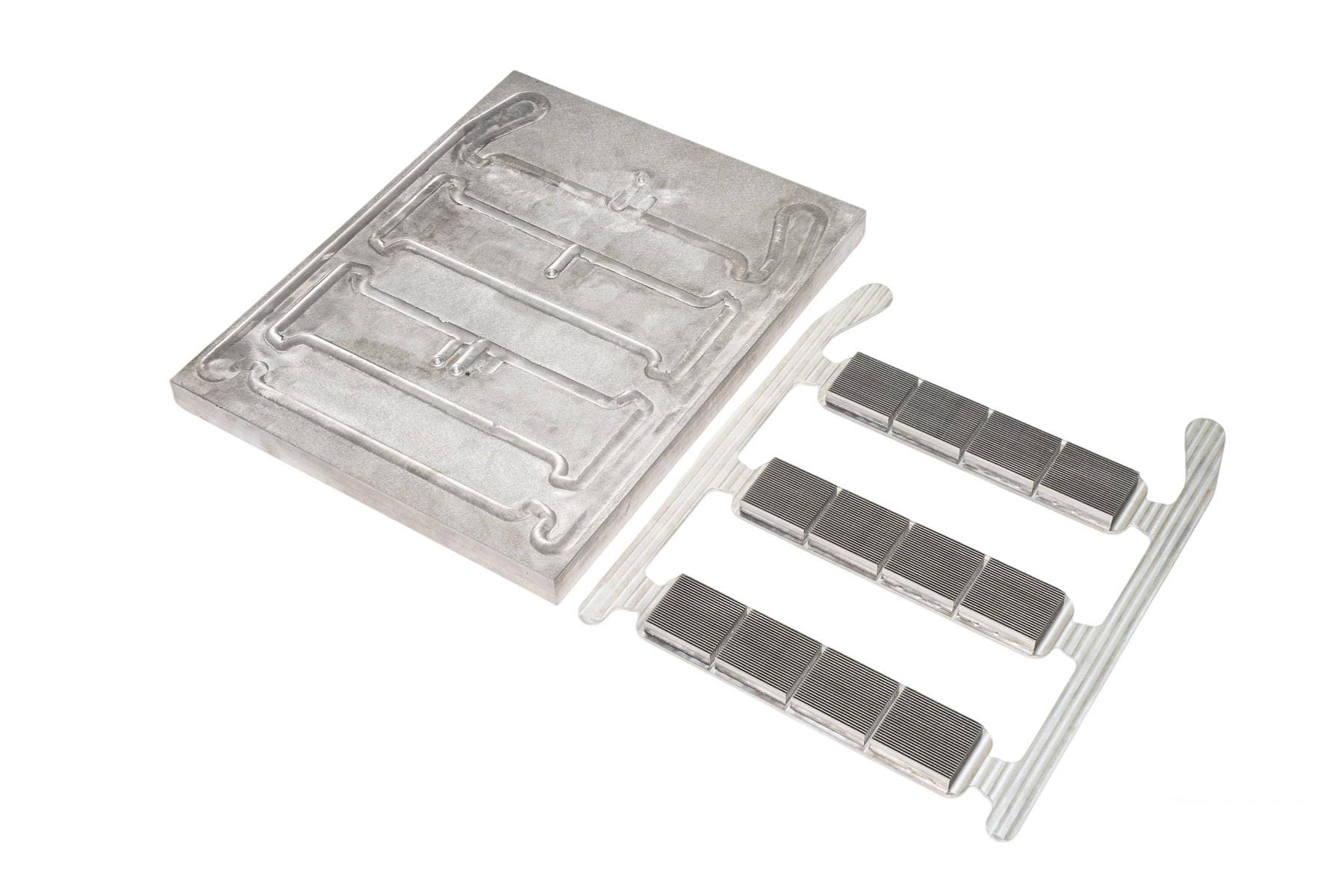

Brazed Liquid Cold Plates: Engineering Guide to High-Performance Thermal Solutions

As power density continues to rise in EV systems, high-performance computing, energy storage, and power electronics, liquid cold plates have become one of the most efficient cooling solutions available.

Among various manufacturing technologies, the brazed Liquid Cold Plate stands out for its structural reliability, sealing performance, and ability to support complex internal flow channels.

This article provides a professional overview of:

· Material selection (copper vs aluminum)

· Vacuum brazing principles

· Manufacturing process flow

· The advantages of vacuum brazed liquid cold plate technology

· Performance validation and quality control

· Application scenarios

1. What Is a Brazed Liquid Cold Plate?

A brazed liquid cold plate is a multi-layer metal thermal component manufactured by stacking and joining thin metal sheets—typically aluminum alloys—through vacuum brazing. The process forms sealed internal coolant channels capable of handling high pressure and high heat flux.

Unlike machined or friction stir welded plates, a vacuum brazed liquid cold plate creates a metallurgical bond between layers using filler metal with a lower melting point than the base material. The base metal remains solid, while the brazing filler melts and flows through capillary action to form high-strength joints.

Key characteristics include:

· Metallurgical bonding strength up to 80–95% of base metal

· Leak rate ≤ 1×10⁻⁷ mbar·L/s

· High-pressure resistance (burst pressure ≥ 3× working pressure)

· Low interfacial thermal resistance

· Complex multi-layer flow channel design capability

2. Material Selection: Aluminum vs Copper

There are two primary materials used in Liquid Cold Plates:

2.1 Aluminum Alloy

Aluminum is widely used due to:

· Lower density (approx. 1/3 of copper)

· Lower material cost

· Good thermal conductivity (150–200 W/m·K)

· Excellent corrosion resistance

· Compatibility with vacuum brazing

Typical materials:

· 3003/4343 clad aluminum sheets

· 6061 aluminum for base structures

Aluminum is the preferred solution unless extremely high heat spreading capability is required.

2.2 Copper

Copper offers:

· Thermal conductivity up to 400 W/m·K

· Excellent heat spreading performance

However:

· Significantly higher weight

· Higher cost

· More difficult processing

Therefore, copper is generally reserved for high-flux applications such as laser systems or extreme power modules.

3. Welding Technologies Used in Liquid Cold Plates

Water-cooled plates are typically manufactured using one of the following joining processes:

· Vacuum brazing

· Friction stir welding

· Laser welding

· Argon arc welding

· Diffusion bonding

Among these, vacuum brazed liquid cold plate technology is widely adopted for aluminum products due to structural flexibility and batch production efficiency.

4. Vacuum Brazing Principle

Vacuum brazing is performed inside a high-vacuum furnace (≤5×10⁻³ Pa). The process involves:

· Heating the entire assembly under vacuum.

· Filler metal (clad layer such as 4343 aluminum alloy) melts at ~580–600°C.

· Molten filler flows through capillary action into joint gaps.

· Diffusion occurs between filler and base metal.

· Metallurgical bonding forms after controlled cooling.

Oxide Film Removal in Aluminum

Aluminum surfaces naturally form a stable Al₂O₃ oxide layer, which inhibits wetting.

In vacuum brazing:

· Magnesium (Mg) acts as an activator.

· Mg reacts with residual oxygen and moisture.

· Mg vapor diffuses under oxide film.

· Formation of low-melting Al-Si-Mg phase breaks oxide adherence.

· Molten filler wets and spreads along the base metal surface.

This mechanism enables clean, flux-free joining and significantly improves corrosion resistance.

5. Manufacturing Process of Brazed Liquid Cold Plates

5.1 Raw Material Preparation

· Clad aluminum sheet verification

· Thickness measurement

· Surface cleanliness inspection

· RoHS/REACH compliance check

· Degreasing and acid activation

5.2 Design & Simulation

· CFD thermal-fluid simulation

· FEA structural analysis

· Brazing deformation prediction

· DFM optimization

5.3 Stamping & Channel Forming

Progressive die stamping forms internal channels.

Typical parameters:

· Channel depth: 0.8–5.0mm

· Burr height: ≤0.02mm

· Position tolerance: ±0.03mm

5.4 Precision Cleaning

· Alkaline degreasing

· Ultrasonic cleaning (40kHz, 50°C)

· Acid activation

· DI water rinse

· Hot air drying

Cleanliness is critical to ensure proper brazing wetting.

5.5 Stacking & Assembly

· Layer alignment using precision fixtures

· Positioning tolerance ≤0.05mm

· Uniform layer gap: 0.05–0.15mm

· Temporary fixation

5.6 Vacuum Brazing Cycle

· Load into furnace

· Vacuum ≤5×10⁻³ Pa

· Controlled heating to 580–600°C

· Hold for 5–15 minutes

· Controlled cooling to minimize stress

Uniform heating ensures minimal thermal distortion and even joint formation.

5.7 Post-Brazing Processing

· Hydraulic flattening

· CNC Machining of ports

· Sealing surface grinding (Ra ≤1.6μm)

· Deburring

· Final cleaning

6. The Advantages of Vacuum Brazed Liquid Cold Plate Technology

The advantages of vacuum brazed liquid cold plate manufacturing include:

6.1 High Structural Integrity

Multiple joints can be brazed simultaneously across the entire surface. The furnace allows stacking, enabling batch processing.

6.2 Excellent Pressure Resistance

Products withstand high operating pressure without deformation.

Typical:

· Working pressure: 1.0 MPa

· Burst pressure: ≥3.0 MPa

6.3 Superior Leak Tightness

Helium leak rate:

≤ 1×10⁻⁷ mbar·L/s

Ideal for long-life EV and HPC systems.

6.4 Minimal Thermal Stress

Entire assembly heated uniformly, reducing distortion and residual stress.

6.5 Complex Flow Channel Capability

Vacuum brazing enables:

· Serpentine channels

· Parallel channels

· Tree-branch structures

· Grid networks

Complex topology improves flow distribution and thermal uniformity.

6.6 Excellent Corrosion Resistance

No flux residue is used, preventing post-process corrosion issues.

7. Performance Validation and Quality Control

7.1 Leak Testing

· Air pressure holding

· Helium mass spectrometer test

· Water pressure test (1.5× working pressure)

7.2 Thermal Performance Test

· Simulated heat load (500–5000W)

· Thermal resistance measurement

· Acceptance: ≤ design value +10%

7.3 Structural Testing

· Burst pressure test

· Pressure cycling (100,000 cycles)

· Vibration testing (10–500Hz)

7.4 Environmental Reliability

· Salt spray ≥48–96 hours

· Thermal cycling

8. Applications of Brazed Liquid Cold Plates

Due to their reliability and structural flexibility, brazed liquid cold plate solutions are widely used in:

· EV battery packs

· IGBT modules

· High-power inverters

· GPU/CPU liquid cooling

· 5G communication systems

· Laser equipment

· Medical imaging systems

In high-power density applications where air cooling is insufficient, vacuum brazed liquid cold plate technology offers stable and long-term thermal management.

9. Limitations of Vacuum Brazing

While highly effective, vacuum brazing has considerations:

· High furnace investment cost

· Energy-intensive process

· Material hardness decreases after high-temperature cycle

· Requires strict cleaning and process control

However, for medium-to-high volume production with complex channel structures, the benefits outweigh these constraints.

A brazed liquid cold plate represents one of the most reliable and structurally advanced solutions in modern Liquid Cold Plates technology.

Through vacuum brazing:

· Complex multi-layer channel systems are realized

· High-pressure sealing performance is achieved

· Low thermal resistance is maintained

· Corrosion resistance is enhanced

When thermal performance, structural reliability, and long service life are critical, a vacuum brazed liquid cold plate provides a proven and scalable solution for demanding industrial and electronic cooling applications.
