As electronic devices become more compact and powerful, thermal management requirements continue to increase. Among various thermal solutions, cold forged heat sinks have emerged as one of the most advanced technologies for high-power and high-reliability applications.

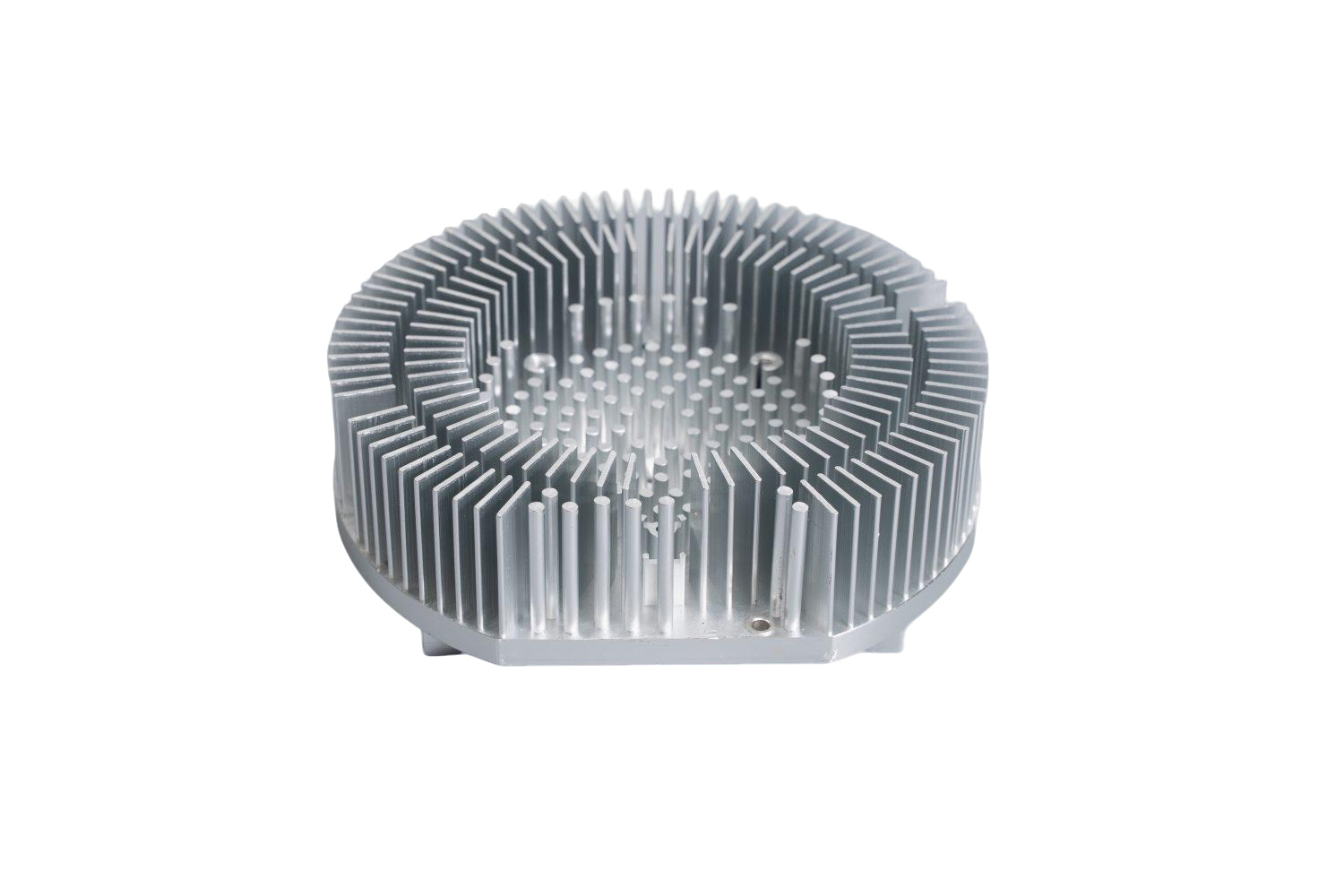

A forged heat sink is produced by applying extremely high pressure to bulk metal at room temperature, reshaping the material into a dense, high-performance heat dissipation structure. Unlike casting, extrusion, or machining, Cold Forging Heat Sink technology forms parts without melting the material, preserving its integrity and optimizing its grain flow for superior thermal performance.
A cold forged heat sink is manufactured by compressing metal billets under high pressure (typically 800–2500 tons) at room temperature. The process reshapes the bulk material into complex fin geometries while maintaining material continuity.
The key characteristics of forging heat sink technology include:
l No melting of material
l No secondary bonding between fins and base
l No internal air bubbles or porosity
l Continuous grain flow structure
Because the fins and base are formed integrally, there are no gaps between components, resulting in lower thermal resistance compared to assembled or brazed designs.
During cold forging, metal grain flow follows the geometry of the fins. This improves thermal conductivity and mechanical strength. Compared to extruded designs:
l Up to 13% better heat conduction than extrusion
l Up to 60% better thermal performance than die casting
A forged copper heat sink benefits even more due to copper’s inherently high thermal conductivity.
Cold forging enables:
l Thin fins (as thin as 0.7mm)
l Tight fin spacing (1mm pitch)
l High fin density
l Aspect ratios up to 1:50
Unlike extrusion, where increasing surface area often increases size and weight, a cold forged pin fin heat sink can significantly improve cooling efficiency while maintaining compact dimensions.
Machined or brazed heat sinks often have micro-gaps between fins and base, increasing thermal resistance over time due to expansion and contraction cycles.
In contrast, forged heat sinks are formed as a single piece, eliminating interface resistance and ensuring long-term reliability.
A cold forged aluminum heat sink is widely used in:
l LED lighting
l Power modules
l Automotive electronics
l Industrial converters
Common materials include:
l 6061
l 6063
l 1070
l 1100
l 7075
Aluminum offers excellent thermal conductivity, lightweight structure, and strong corrosion resistance after anodizing.
Copper is difficult to extrude but ideal for forging. A cold forging copper pin fin heat sink offers:
l Extremely high thermal conductivity
l Superior performance for high-power CPUs
l Excellent reliability for EV controllers
A forged copper heat sink is especially suitable for applications where rapid heat spreading is critical.
The cold forging heat sink manufacturing process includes the following key stages:
l Billet cutting with ±0.5% weight tolerance
l Annealing to O-state (HB 30–45)
l Surface phosphating and lubrication
Proper billet control ensures stable forming and long tool life.
l Tool steel: SKD11, H13, D2
l Vacuum quenching and tempering
l PVD coating (TiN / TiAlN)
l Precision grinding (±0.002mm tolerance)
Mold production cycle: 15–25 days.
Using an aluminum heat sink cold forging machine, the forming process includes:
1. Pre-forming (30–40% deformation)
2. Main fin forming (400–800 tons pressure)
3. Calibration and finishing
4. Trimming
Material fill rate ≥98% ensures complete fin formation.
Production capacity: 2000–5000 pieces/day per machine.
l Solution treatment at 530°C
l Rapid quenching (<15s transfer time)
l Aging process
This enhances mechanical strength and dimensional stability.
l Mounting surface milling (Ra ≤0.8μm)
l Hole drilling and threading
l Deburring
Unlike extrusion or die-casting, secondary machining is minimal.
l Anodizing (15±2μm)
l Chemical nickel plating
l Conductive oxidation
The final product has a smooth surface and high corrosion resistance.
Feature | Cold Forged Heat Sink | Extrusion | Die Casting | Machining |
Thermal Conductivity | Excellent | Moderate | Low | Moderate |
Aspect Ratio | Up to 1:50 | ~1:25 | Limited | Limited |
Structural Integrity | One-piece | One-piece | Porous | Multi-part |
Surface Finish | Smooth | Good | Rough | Good |
Production Volume | High | High | Very High | Low |
A cold forged pin fin heat sink also supports 3D airflow, unlike extruded plate designs that allow only 2D airflow.
Cold forged heat sinks are widely used in:
l Electric vehicle motor controllers
l Wind power converters
l PV inverters
l Energy storage systems
l LED lighting modules
l Multi-chip power electronics
The automotive industry remains the largest consumer of forged heat sinks due to performance and reliability requirements.
Partnering with a professional cold forging heat sink wholesaler or china cold forging heat sink for LED supplier ensures:
l In-house mold development
l High-tonnage forging machines
l Thermal resistance testing capability
l Strict quality control (ASTM D5470 testing)
l Stable high-volume production
Typical new project lead time: 32–54 working days
Mass production lead time: 16–27 days
l Superior thermal conductivity
l High mechanical strength (20–30% stronger due to strain hardening)
l High dimensional accuracy (±0.05mm)
l Large size capability (up to 200mm × 250mm and beyond)
l Multi-directional air cooling
l Lightweight and compact design
l Excellent appearance after anodizing
Cold forging currently delivers one of the best thermal performances available for high-power electronic cooling.
Cold forged heat sinks represent a premium thermal management solution for demanding applications. Whether you require a cold forged aluminum heat sink, a cold forging pin fin heat sink, or a high-performance forged copper heat sink, cold forging provides superior thermal conductivity, structural strength, and design flexibility.
Compared to extrusion, die casting, or machining, a forged heat sink offers:
l Better heat dissipation
l Higher aspect ratio
l Lower thermal resistance
l Stronger mechanical properties
l Cost efficiency in high-volume production
For high-power electronics, EV systems, and LED cooling, cold forged heat sinks remain one of the most reliable and technologically advanced solutions available today.
