Zipper Fin Heat Sinks: Advanced Heat Dissipation Solutions

In modern thermal management, zipper fin heat sinks have become an essential solution for efficiently dissipating heat in electronics, LED lighting, power electronics, and high-performance computing systems.

Unlike traditional fin heat sinks, zipper fin designs provide modularity, flexibility, and high-density fin arrangements that maximize heat transfer while simplifying assembly.

What Are Zipper Fin Heat Sinks?

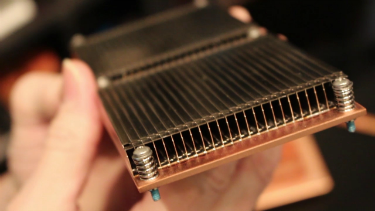

A zipper fin heat sink consists of thin metal fins that are mechanically interlocked or “zipped” together to form a continuous stack. The name “zipper” comes from the way these fins connect, similar to the teeth of a zipper. This design allows manufacturers to handle a single fin stack instead of assembling hundreds of individual fins, significantly improving efficiency in mass production.

The manufacturing process begins with sheet metal stock, where each fin’s geometry, thickness, and pitch are progressively punched and formed. Secondary punching operations fold and lock each fin into place, creating a robust fin stack ready to attach to a heat sink base. This makes zipper fin heat sinks ideal for high-volume production applications.

Types of Zipper Fin Heat Sinks

There are two primary types of fin attachment methods:

Crimped or Snap-Fit Fin Heat Sinks

· Fins are mechanically inserted into base slots without the need for adhesives or solder.

· Advantages: low cost, high production speed, environmentally friendly.

· Typical applications: low-to-medium power electronics (<100w).<>

Staked or Inserted Fin Heat Sinks

· Fins pass through pre-drilled holes in the base and are secured using soldering, epoxy, or mechanical staking.

· Advantages: high mechanical strength, low thermal resistance, and higher fin height capability.

· Typical applications: high-power electronics (>100W), harsh environments, or high-reliability applications.

These two methods provide flexibility depending on application requirements, heat dissipation needs, and production volumes. A hybrid approach can also be used, combining mechanical crimping with localized soldering or epoxy bonding for critical sections.

Fabrication and Machining of Zipper Fin Heat Sinks

The zipper fin heat sink fabrication process involves several precise stages:

Fin Material Preparation

· Aluminum or copper strips are tested for tensile strength, elongation, hardness, and surface roughness.

· Aluminum fins are typically 0.1–0.3mm thick, while copper fins are thicker for high thermal conductivity applications.

Base Plate Preparation

· The base may be aluminum, copper, or a combination, depending on thermal requirements.

· Surface treatments, including sandblasting or chemical activation, ensure a strong bond with the fins.

Fin Stamping and Folding

· Progressive stamping machines cut and shape the fins with precise pitch and locking geometry.

· After punching, fins are folded and mechanically locked, forming a complete fin stack.

Assembly (Zipper Fin Attachment)

· Crimped fin heat sinks are mechanically locked into the base.

· Staked fin heat sinks may require soldering, epoxy bonding, or mechanical staking.

· This stage ensures optimal thermal contact and mechanical stability.

Post-Processing

· Fins and assemblies undergo stress-relief annealing, surface cleaning, and optional anodizing or plating.

· Final quality checks include dimensional inspection, thermal resistance testing, and visual surface verification.

The combination of machining heat sink fins, stamping, and assembly ensures precise and repeatable production of customized zipper fin heat sinks for specific applications.

Advantages Over Other Fin Heat Sinks

Compared to conventional pin fin heat sinks or plate fin heat sinks, zipper fin designs provide:

· High Fin Density: Enables more fins per inch (FPI) than traditional extrusions or skived fins.

· Modularity: Fins can be pre-assembled as stacks and attached to the base efficiently.

· Material Flexibility: Aluminum, copper, or hybrid bases and fins can be used depending on thermal conductivity needs.

· Customization: Customized zipper fin heat sinks can be designed for unique applications, including embedded heat pipes or tower designs.

· Scalability: Ideal for high-volume production due to standardized stamping and folding processes.

Additionally, zipper fin heat sinks can be integrated into advanced thermal solutions, such as combining Skived Fin Heat Sinks, pin fin heatsinks, or hybrid aluminum/copper assemblies, providing optimized heat dissipation for modern high-power devices.

Applications of Zipper Fin Heat Sinks

· Power electronics modules

· LED lighting fixtures

· Telecom and server racks

· Automotive electronics and EV battery cooling

· High-performance computing (HPC) systems

KINGKA, for instance, utilizes zipper fin stacks attached to a base as a simple yet efficient heat sink with fins. In more advanced configurations, these stacks are combined with heat pipes or embedded structures to create self-supporting or large tower heat sinks.

Choosing the Right Zipper Fin Heat Sink

When selecting a zipper fin heat sink, consider:

· Heat dissipation requirement (W)

· Environmental conditions (temperature, humidity, vibration)

· Base and fin material (copper vs. aluminum)

· Fin height, pitch, and stacking density

· Production volume and cost considerations

Advanced designs can mix aluminum heat sink fins with copper bases for optimal thermal performance, leveraging epoxy bonding or soldering techniques for maximum efficiency.

Zipper fin heat sinks represent a highly adaptable, high-performance solution in thermal management. Their modular design, high fin density, and customizable fabrication make them ideal for a wide range of electronics and industrial applications. By leveraging zipper fin heat sink machining and progressive stamping techniques, manufacturers can produce fin heat sinks that offer superior heat transfer, mechanical stability, and design flexibility.

Whether you are looking for pin heat sinks, plate fin heat sinks, skived fin heat sinks, or fully customized zipper fin heat sinks, modern fabrication methods provide precise and efficient solutions tailored to your application. Contact your zipper fin heat sink factory or design engineers today to explore the best thermal solution for your project.
